T.plate 4.5mm

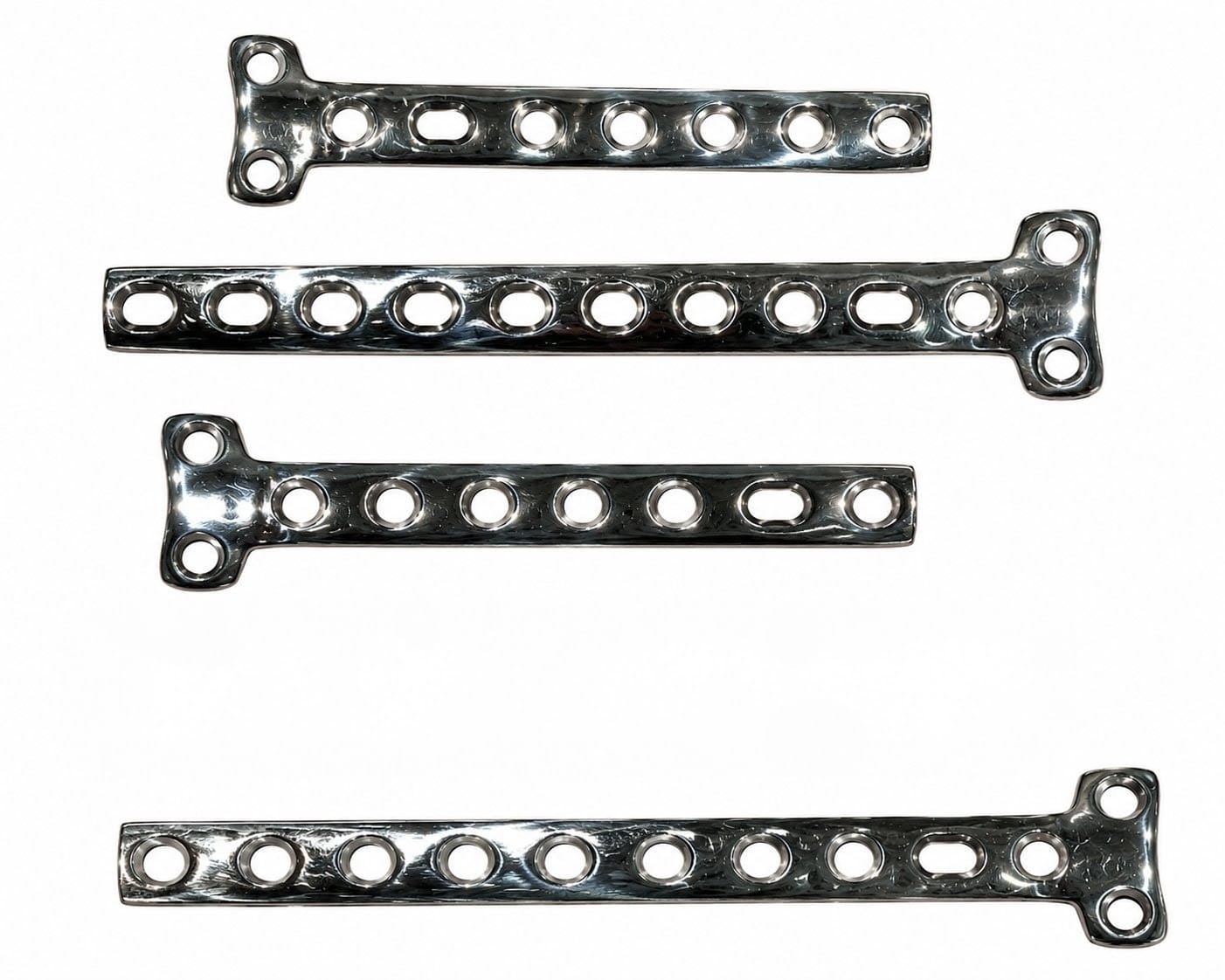

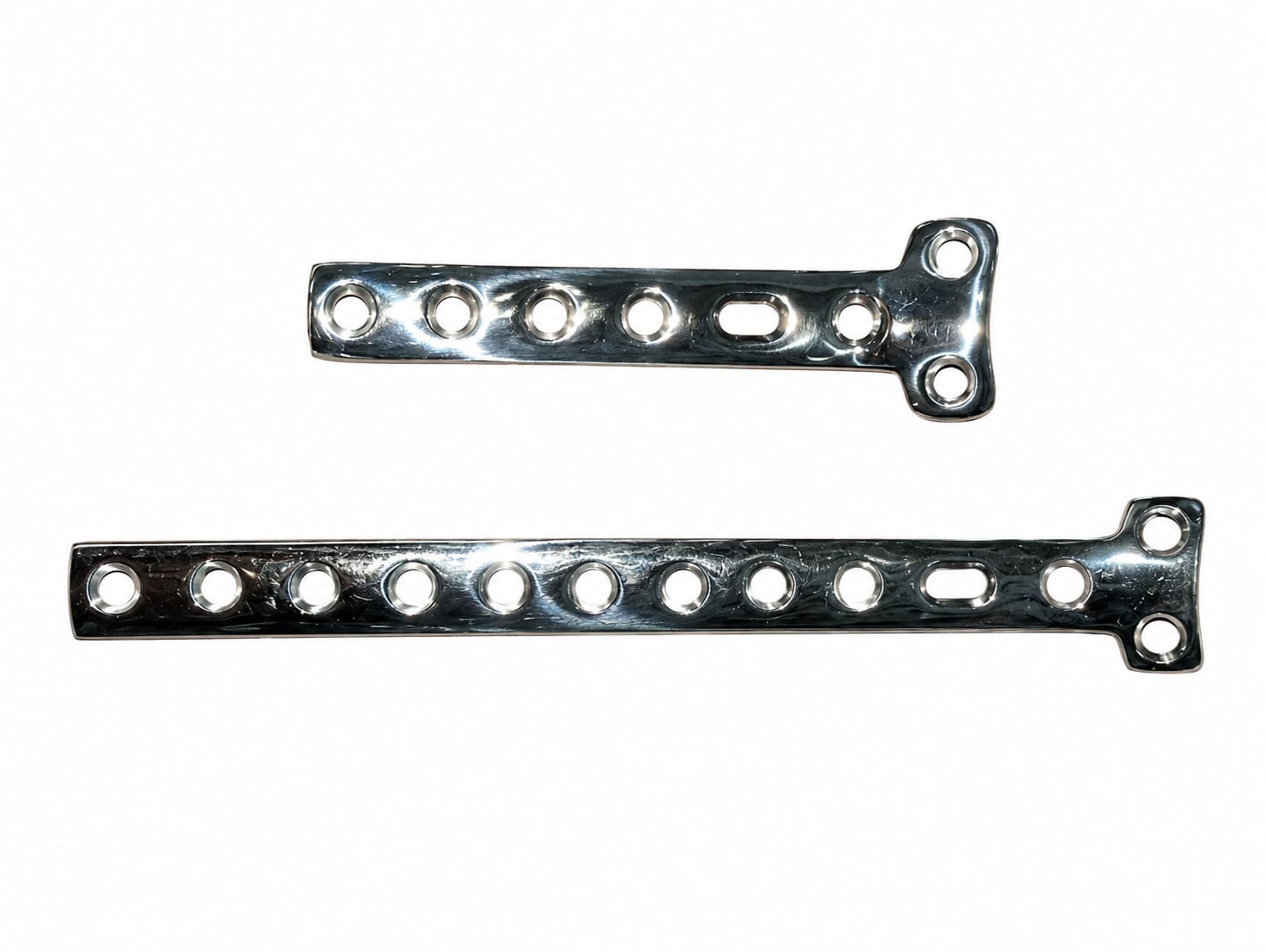

Our 4.5mm Conventional T-Plate is a high-performance, heavy-duty large fragment trauma implant engineered for the structural buttressing and rigid internal fixation of fractures in major weight-bearing bones. Featuring a classic symmetric T-shaped geometry, this non-locking compression plate is specifically designed to provide robust surface reinforcement across wide, flat metaphyseal bone structures. It serves as a primary clinical choice for managing fractures, non-unions, and high-load osteotomies of the proximal tibia (tibial plateau), proximal and distal humerus, and distal femur.

Crafted from medical-grade, high-mirror electropolished Surgical Stainless Steel 316L or Premium Titanium Alloy, this plate relies on classic dynamic compression mechanics. The broad transverse head accommodates standard cortical or cancellous screws to compress and secure large joint fragments. Meanwhile, the longitudinal shaft incorporates an integrated elongated adjustable compression slot alongside a series of smooth-sloped dynamic compression holes. This configuration provides surgeons with maximum intraoperative control to fine-tune alignment before applying powerful horizontal force to tightly close the fracture gap.

Key Features & Benefits

• Dynamic Compression Shaft Holes: Designed with a smooth-sloped elongated slot alongside conventional compression holes, allowing standard 4.5mm cortical screws to exert powerful horizontal force to close fracture gaps.

• Transverse Joint Buttressing: The horizontal head of the “T” perfectly adapts to broad metaphyseal bone surfaces, providing rigid mechanical support to prevent the displacement of large articular fragments.

• Heavy-Duty Mechanical Build: Engineered with an increased profile width and structural thickness to withstand intense bending forces and physiological loads inherent to the tibia and humerus.

• Comprehensive Sizing Series: Available in multiple shaft length variants (ranging from short 6-hole configurations up to extended 11+ hole variants) to seamlessly span a wide array of fracture lines.

• High-Mirror Electropolishing: Precision surface treatment yields exceptional biocompatibility, eliminates sharp edges, and protects adjacent soft tissues and vital blood vessels from postoperative friction.

Product Specifications

Clinical Applications

• Rigid internal fixation of metaphyseal and intra-articular fractures of the proximal tibia (tibial plateau split fractures).

• Stabilization of high-stress fractures across the proximal or distal humeral shaft.

• Fixation of complex diaphyseal fractures extending into the metaphyseal bone expansion.

• Treatment of heavy-load human bone non-unions, mal-unions, and advanced large-animal veterinary surgeries.
