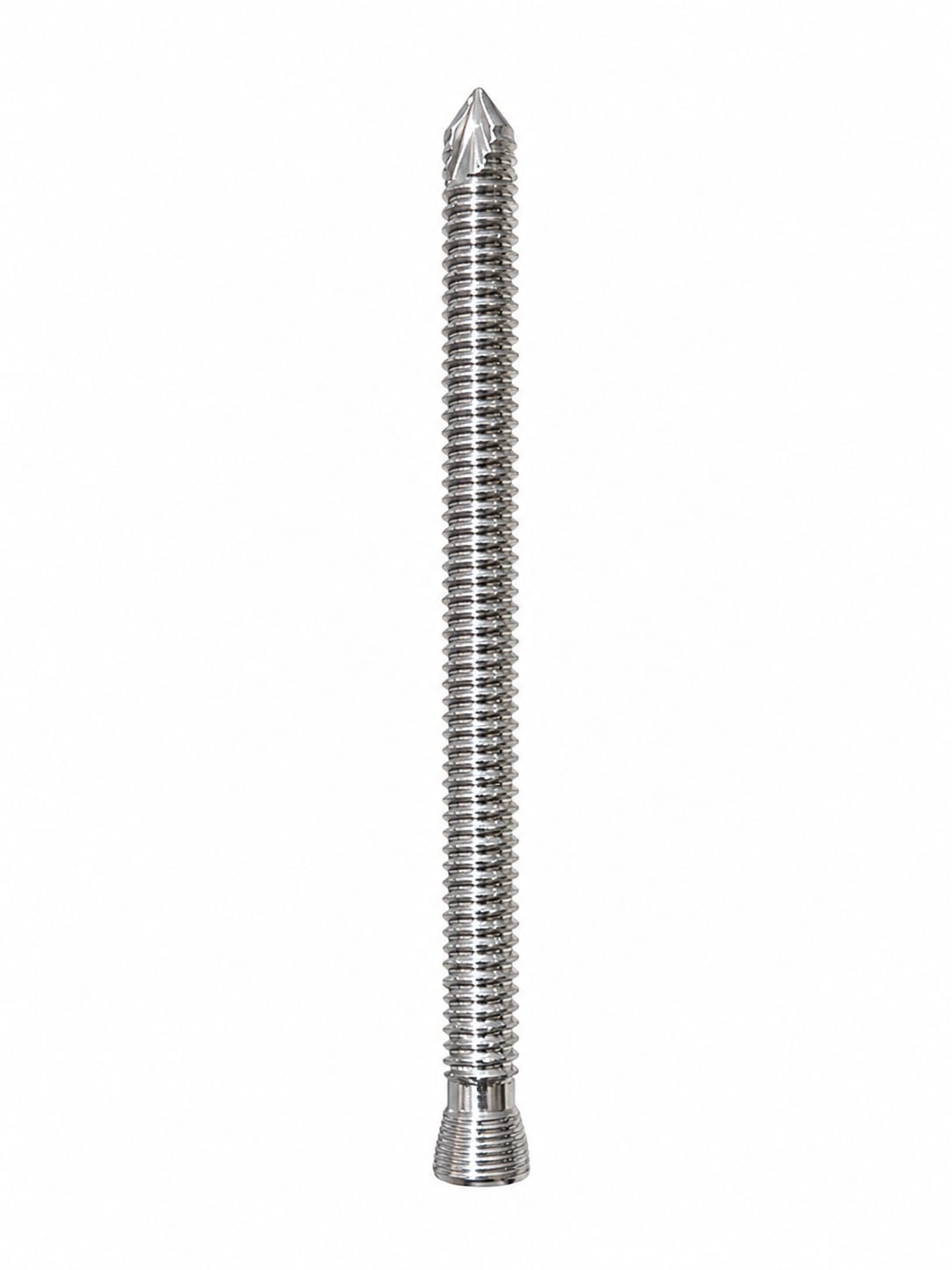

Our LCP (Locking Compression Plate) Locking Screw is a technologically advanced orthopedic implant engineered for modern rigid internal fixation. Designed with a specialized threaded, conical head, this screw locks directly into the corresponding threaded holes of a Locking Compression Plate (LCP). This integration creates a highly stable, fixed-angle construct that does not rely on screw-to-bone compression to maintain alignment, making it exceptionally effective in osteoporotic bone, comminuted fractures, or multi-fragmentary trauma.
The fully threaded cortical profile provides an exceptional grip within the bone matrix, while the self-tapping tip allows for precise insertion with minimized operating time. Featuring a specialized internal drive socket, it ensures maximum torque transmission without the risk of stripping.
Key Features & Benefits
-
Threaded Conical Head: Threads directly into LCP plates to create a single, rigid, fixed-angle construct that minimizes construct failure and preserves periosteal blood supply.
-
Fully Threaded Cortical Profile: Engineered with dense, shallow-pitch cortical threads designed for maximum surface area engagement and pull-out resistance in hard cortical bone.
-
Advanced Self-Tapping Tip: Features sharp cutting flutes at the tip to eliminate the need for independent pre-tapping, streamlining surgical workflows.
-
Low-Profile Design: The tapered head sits perfectly inside LCP combination plate holes, reducing post-operative soft-tissue irritation and friction.
-
Elite Biocompatibility: Fabricated from superior medical-grade Titanium Alloy or Stainless Steel to handle strenuous physiological loading while preventing adverse tissue reactions.
Technical Specifications
| Feature | Specification |
| Product Type | LCP Locking Screw |
| Head Design | Conical Threaded (LCP Compatible) |
| Drive Type | Star (Stardrive) / Hexagonal Socket |
| Thread Configuration | Fully Threaded |
| Thread Type | Cortical / Small & Large Fragment Variants |
| Tip Design | Self-Tapping with cutting flutes |
| Material Options | Titanium Alloy (Ti-6Al-4V) / Medical Grade Stainless Steel (316L) |
| Sizing Availability | Available in comprehensive diameters (e.g., 2.4mm, 2.7mm, 3.5mm, 5.0mm) and lengths |
| Sterilization | Delivered Non-Sterile (Autoclavable) |
Clinical Indications
The LCP Locking Screw system is universally indicated for:
-
Fixation of complex intra-articular or comminuted fractures requiring absolute fixed-angle stability.
-
Osteopenic and osteoporotic bone fixation where traditional cortical screws lack adequate purchase.
-
Use within LCP dynamic compression plates, neutral plates, buttress plates, and anatomical locking plates.
-
Diaphyseal and metaphyseal fractures across long bones.
